Specialized Battery Requirements for RF (Radio Frequency) and EMS (Micro-current) Technologies

Introduction: Why Standard Batteries Fail in Professional Beauty Devices

Not all 18650 cells are created equal. While a standard battery might power a flashlight, a professional RF Beauty Device or EMS Face Massager demands a much more sophisticated energy profile. The difference lies in the Energy Delivery Architecture. In this chapter, we analyze the specific electrical demands of RF and EMS technologies and why DATA Power’s high-capacity solutions are engineered to meet them.

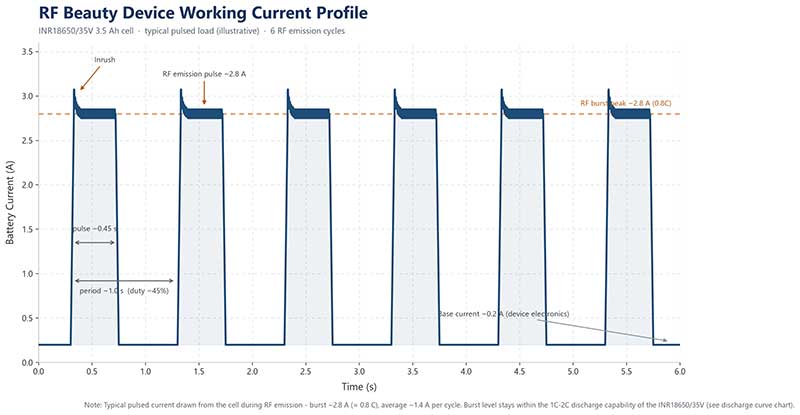

1. RF (Radio Frequency): The Need for High-Current Pulse Stability

RF technology works by generating high-frequency electromagnetic waves to heat the dermis layer. This process requires:

• Instantaneous Power Surges: RF engines often require sudden bursts of current. A battery with high internal resistance will suffer from Voltage Sag, causing the RF intensity to fluctuate and reducing the treatment's effectiveness.

• Thermal Stability under Load: Continuous RF output generates internal heat. Our 18650-3500mAh cells are selected for their low AC Internal Resistance (ACIR), ensuring the battery remains cool even during a full 15-minute high-intensity skin-tightening session.

• High Discharge Efficiency: We optimize the cell chemistry to support consistent discharge rates, ensuring the RF head reaches the target temperature  quickly and maintains it without interruption.

2. EMS (Electrical Muscle Stimulation): The Precision of Voltage Control

EMS technology uses low-voltage electrical impulses to stimulate muscle contraction. The battery’s role here is all about Precision:

• Micro-ampere Consistency: EMS requires extremely fine-tuned energy output. Any noise or ripple in the battery's voltage can lead to "Electrical Stinging"—an unpleasant sharp sensation for the user.

• Linear Discharge Plateau: DATA Power utilizes Ternary (NCM) cells with a flat discharge curve. This ensures that the user feels the same intensity of muscle stimulation at 20% battery as they did at 100%, providing a premium user experience.

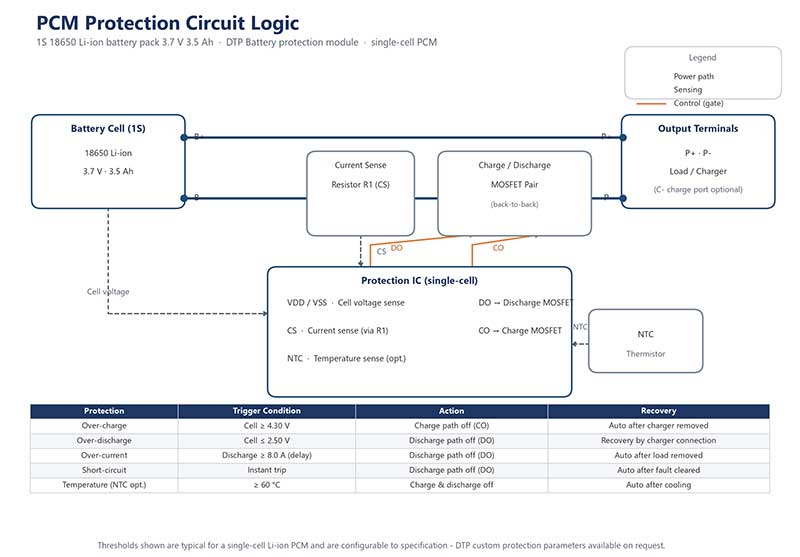

3. The Central Nervous System: DATA Power’s Smart PCM

For beauty devices, the Protection Circuit Module (PCM) is as important as the cell itself. Our custom-designed PCMs for the beauty industry feature:

• High-Precision Monitoring: We use elite Domestic ICs that monitor voltage with a precision of ±0.05V. This prevents the over-discharge that often kills batteries in seasonal beauty products.

• Custom Current Limits: We calibrate the PCM’s over-current protection to match the specific peak current of your RF engine, preventing accidental shutdowns during intensive use.

• Ultra-low Static Power Consumption: Since beauty devices may sit on a shelf for months, our PCMs are optimized for low self-discharge, ensuring the device is ready to use when the consumer picks it up.

4. DATA Power’s "4-Point QC" for Individual Cells

To guarantee the reliability of every 18650-3500mAh pack, we implement a rigorous 4-Point Quality Control system:

1.Capacity Grading: Every cell is tested for true 3500mAh capacity.

2.Voltage Matching: Cells in a pack are matched within a 5mV difference.

3.Internal Resistance Sorting: Ensuring uniform energy flow and heat distribution.

4.Aging Test: A mandatory 48-hour static aging test to eliminate any potential "sleeping" defects.

Conclusion: Engineering Trust into Every Pulse

When a consumer uses an anti-aging device, they trust it to be safe and effective. That trust starts with the battery. By choosing DATA Power’s RF-optimized 18650 packs, you are not just buying a component; you are integrating a high-performance energy system designed for the beauty industry’s unique demands.

Ready to optimize your device’s energy performance? Download our Technical Datasheet or consult with a DATA Power engineer for a custom PCM configuration.
